Education · Ireland
TU Dublin External Signage Programme
- Client
- Technological University Dublin
- Location
- Blanchardstown, Tallaght and Bolton Street campuses, Dublin
- Completed
- 2023–2026
- Sector
- Education
- Scope
- External sign family for TU Dublin campuses · Campus entrance monoliths and identification signs · Orientation totems with colour-coded campus mapping · Building identification monoliths, post-and-panel and wall signs · Bilingual content setting, Irish first · Manufacture and installation
TU Dublin was established in 2019 from Dublin Institute of Technology and the institutes of technology at Blanchardstown and Tallaght. The external signage programme gives those campuses one identity at the gate, the boundary wall and the door.
University established
Campuses in this programme
Sign geometry
Languages
Technological University Dublin was established on 1 January 2019, bringing together Dublin Institute of Technology and the institutes of technology at Blanchardstown and Tallaght. The university holds campuses on opposite sides of the city, in buildings that have nothing in common architecturally: a 1970s business park at Blanchardstown, a walled site at Tallaght, a Georgian street frontage at Bolton Street. External signage is where one institution becomes visible from the road.
A family that fits what it is fixed to

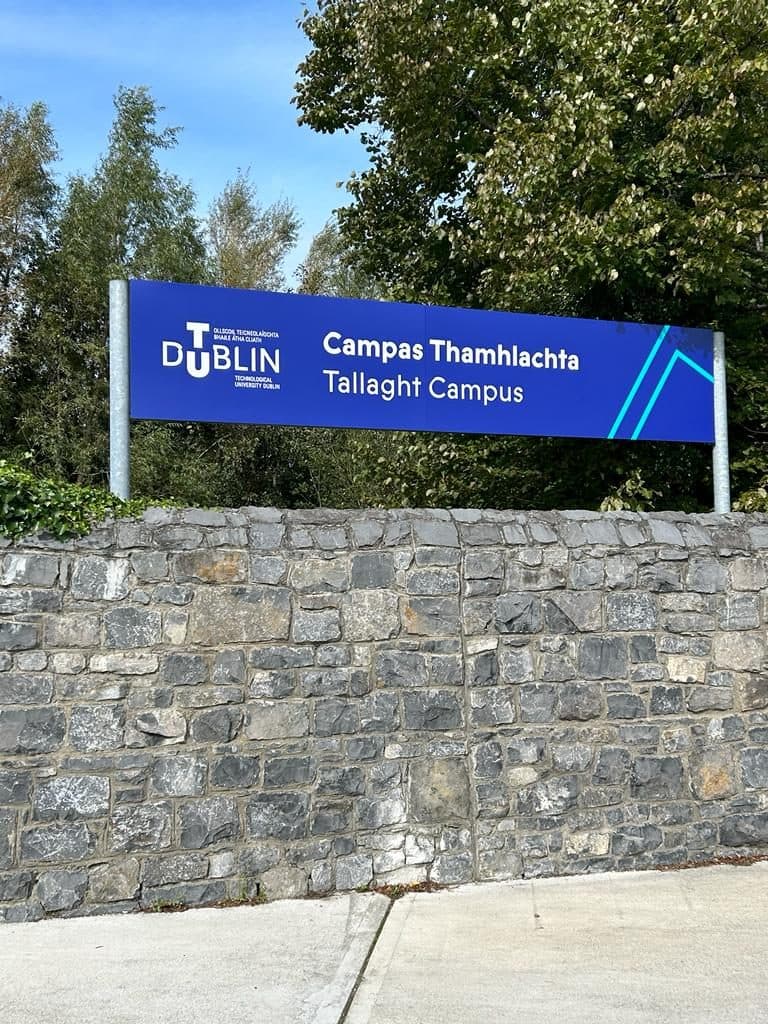

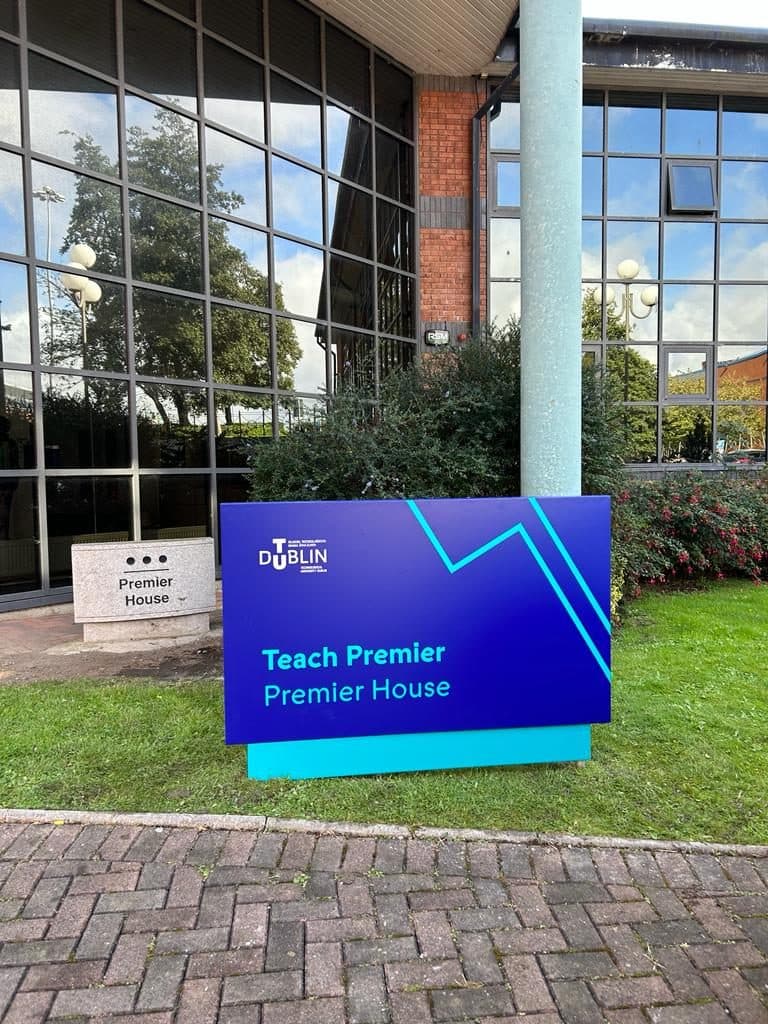

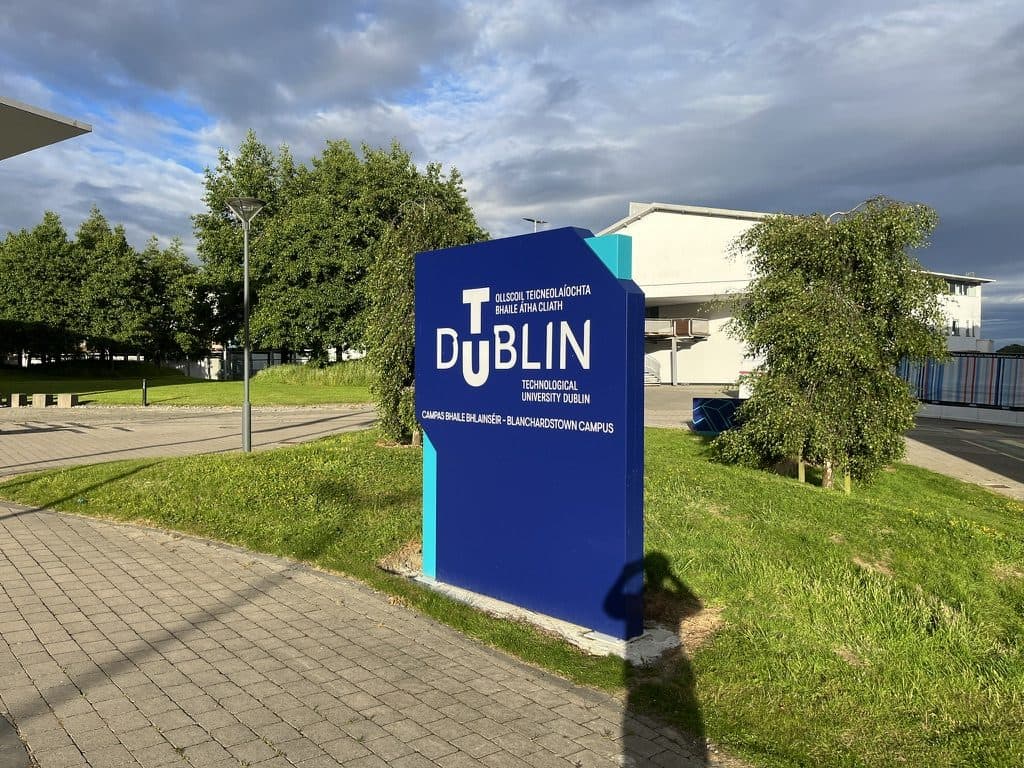

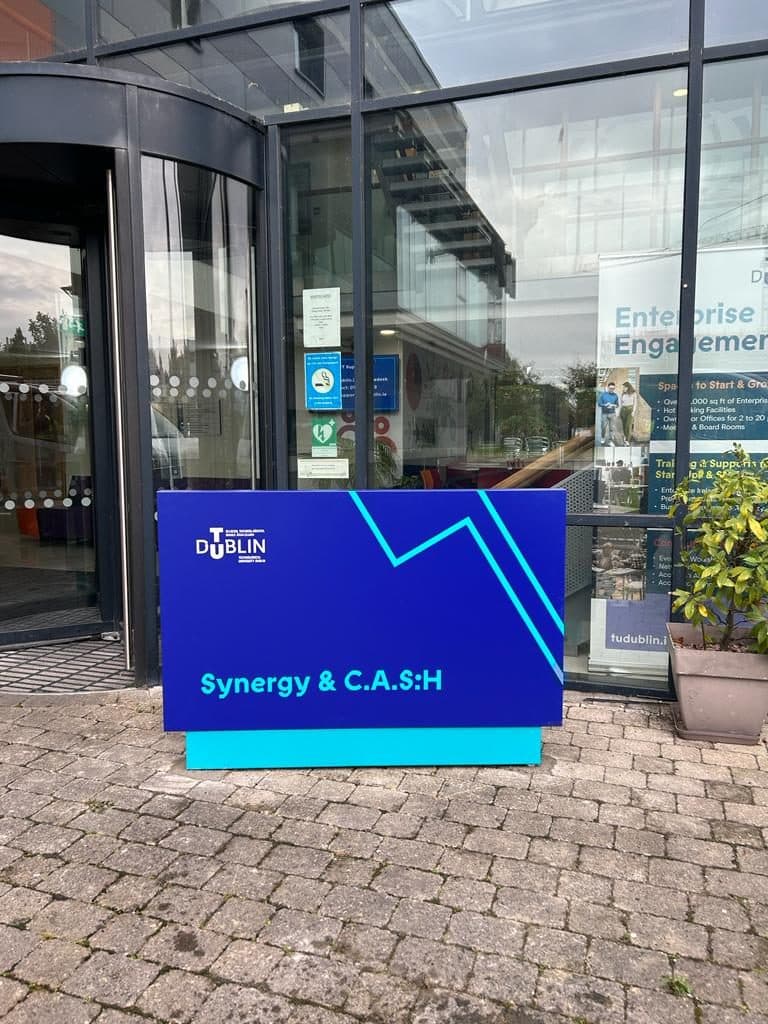

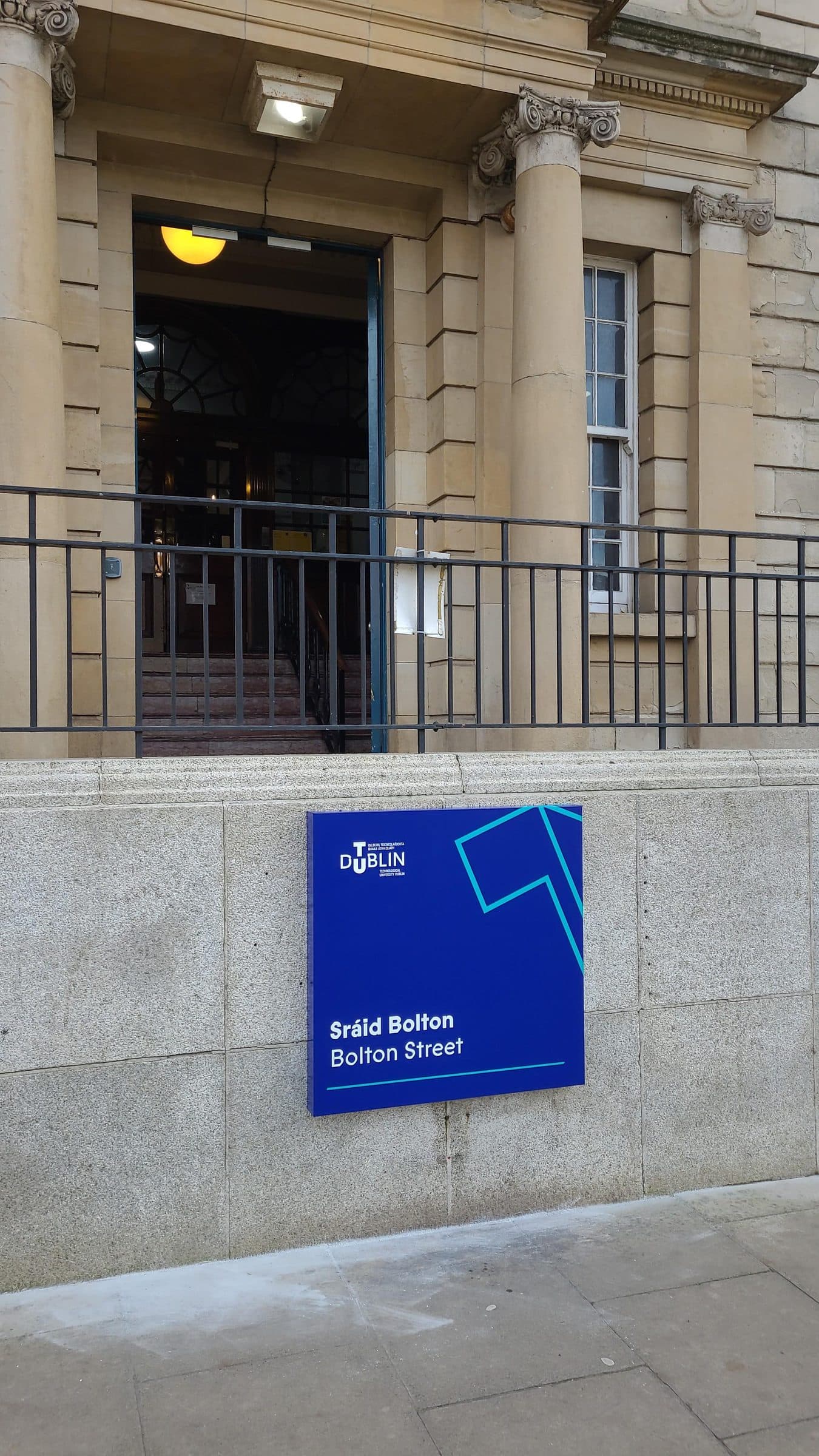

The same system appears as a free-standing monolith on grass at Blanchardstown, as a long panel set along a rubble stone boundary wall at Tallaght, and as a square plate on the granite plinth below the portico at Bolton Street, clear of the dressed stone above it. Each carries the same deep blue field, the same light teal line work and the same 45-degree cut taken from the angled terminals of the TU Dublin logotype. What changes between them is the fixing: ground sleeves where there is soft ground, base plates where there is an existing base, concealed internal rails where the sign meets masonry.
The Irish name comes first

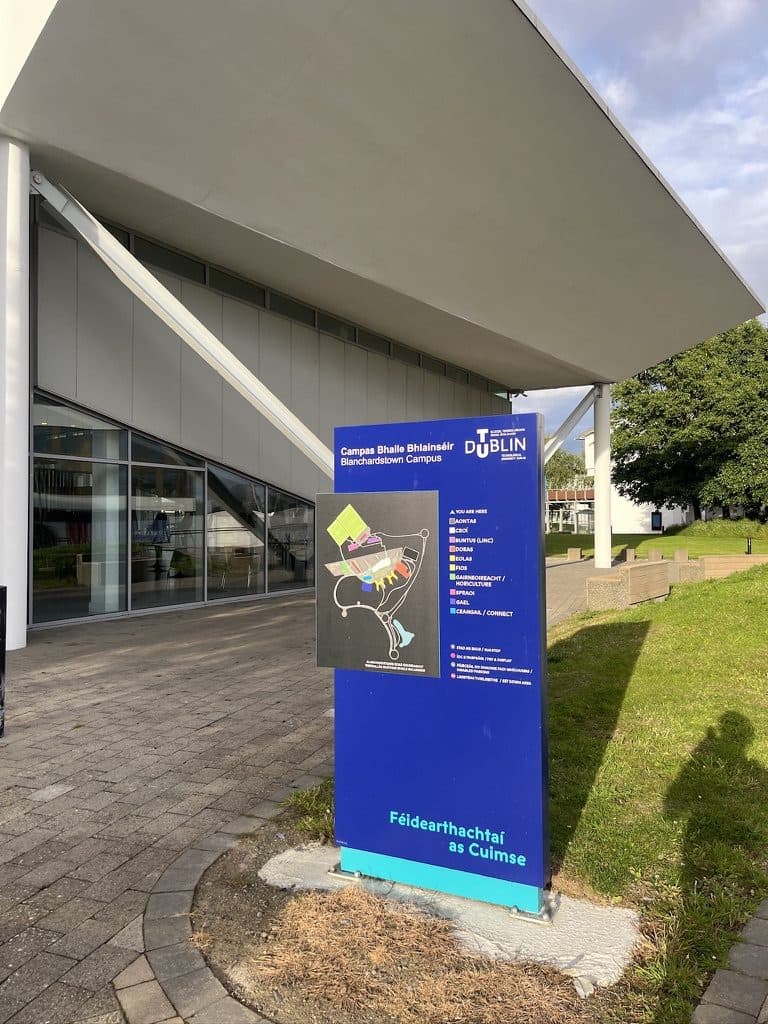

TU Dublin is a public body. Under the Official Languages Act 2003 and the signage regulations made under section 9, the Irish text on a public body's sign comes first and is no less prominent than the English. On these panels the Irish is set above the English and in the heavier weight: Sráid Bolton over Bolton Street, Campas Bhaile Bhlainséir over Blanchardstown Campus, Ionad Teicneolaíochta Eitlíochta over Aviation Technology Centre. The orientation totem at the campus entrance extends the same logic to the map, where the buildings carry their Irish names (Aontas, Croí, Doras, Solas, Fios, Spraic, Gael), and each zone is keyed to its own colour in the legend. The map sits in its own panel, mounted flush to the totem rather than printed into it.
The statute decides which language comes first. The typography decides whether that reads as an obligation or as a choice.
